Bearing life:up to 10 years
Bearing accuracy:up to P5, P6 accuracy class
Product certification:through Rohs, SGS and other testing certification
Temperature environment: can be used in temperature environment from -60°C to +230°C
| Demesions: | |

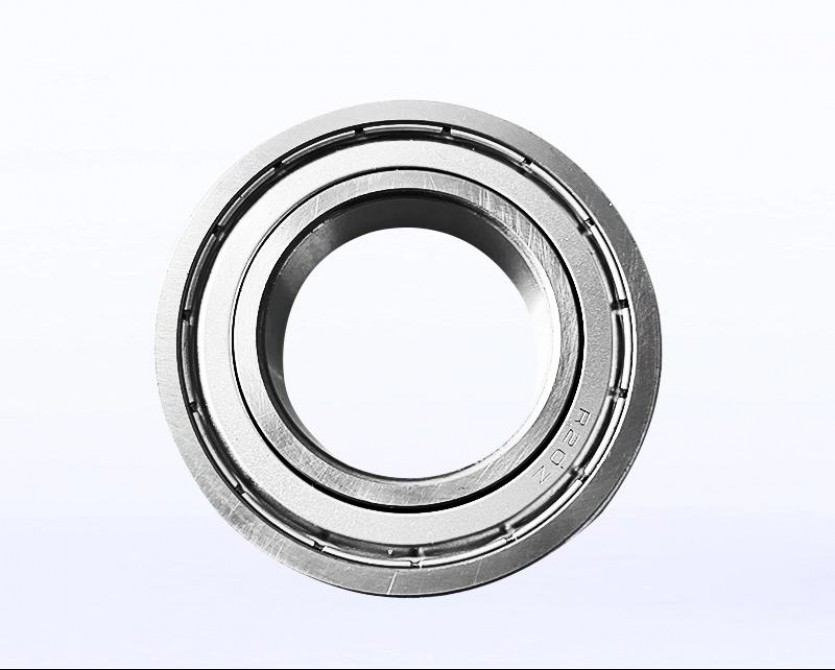

| Bearing No. | 6004, 6004-ZZ, 6004-2RS, 6004Z, 6004RS, 6004 ZZ, 6004 RS |
| Bore diameter (d) | 20 mm |
| Outer diameter (D) | 42 mm |
| Width (B) | 12 mm |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 9400 |
| Static(Cor) | 5050 |
| Max. Speed(RPM) | |
| Grease | 17000 |
| Oil | 21000 |
| Weight(g) | |
| Approx. | 69 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
